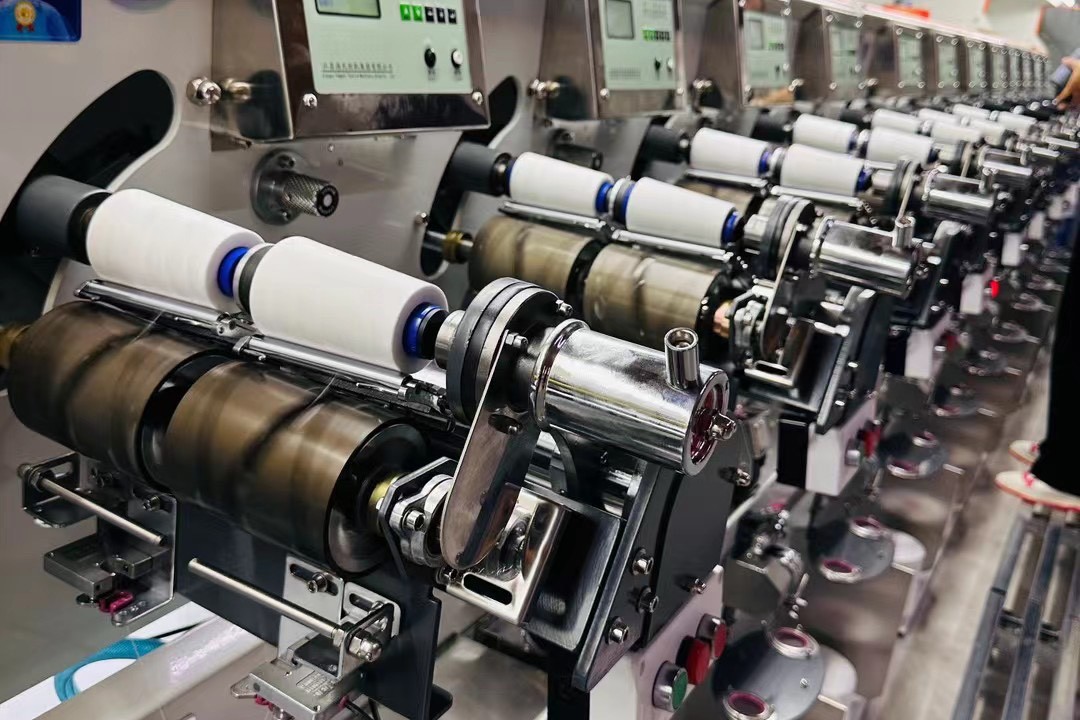

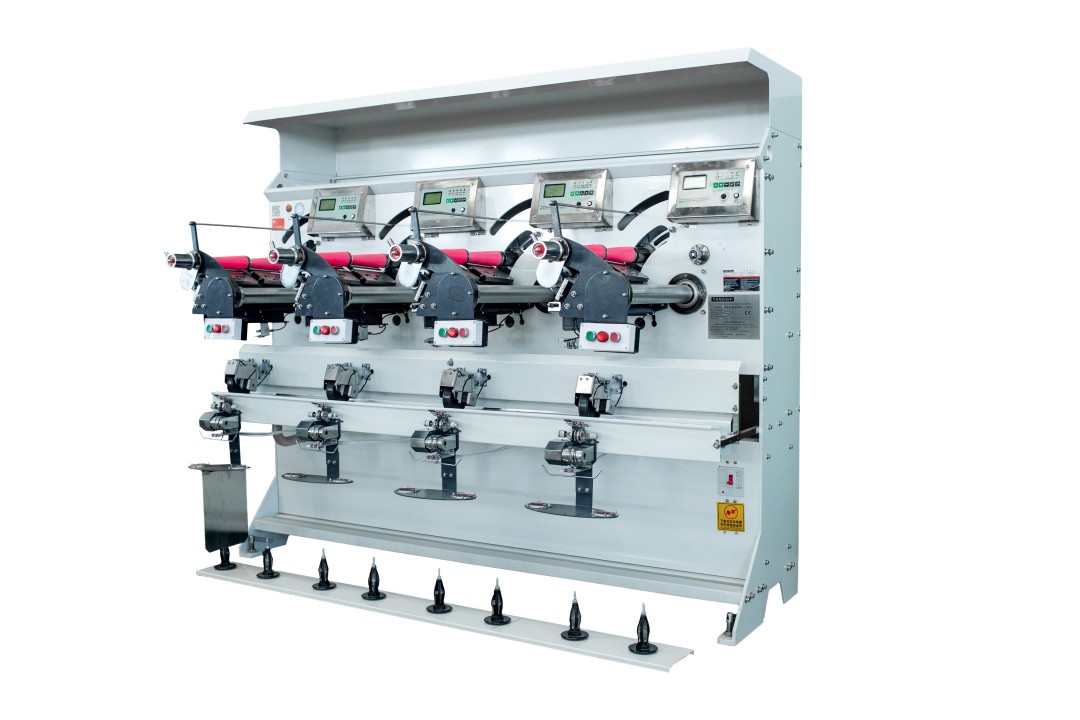

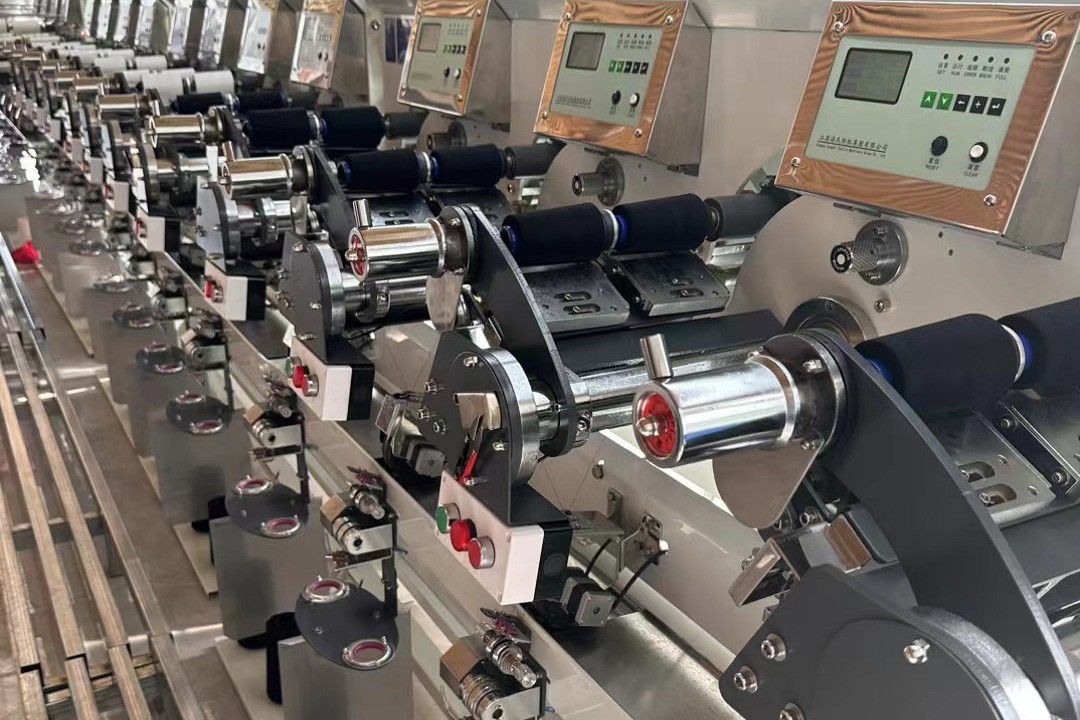

TS008O High Speed Thread Winding Machine

Machine Application:

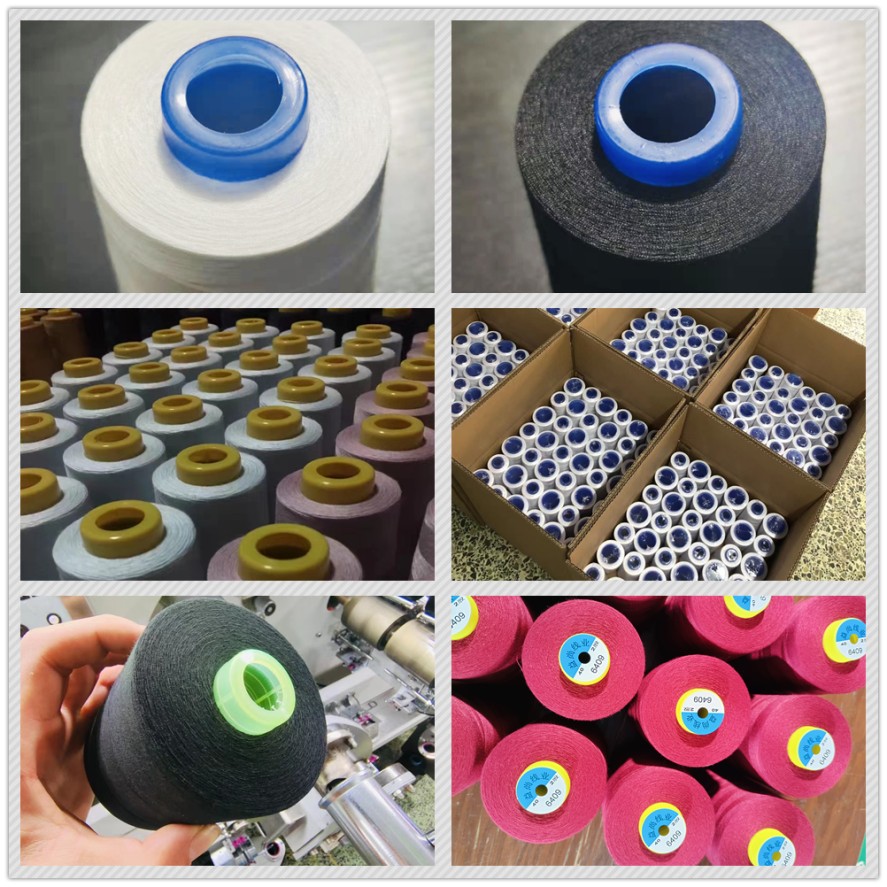

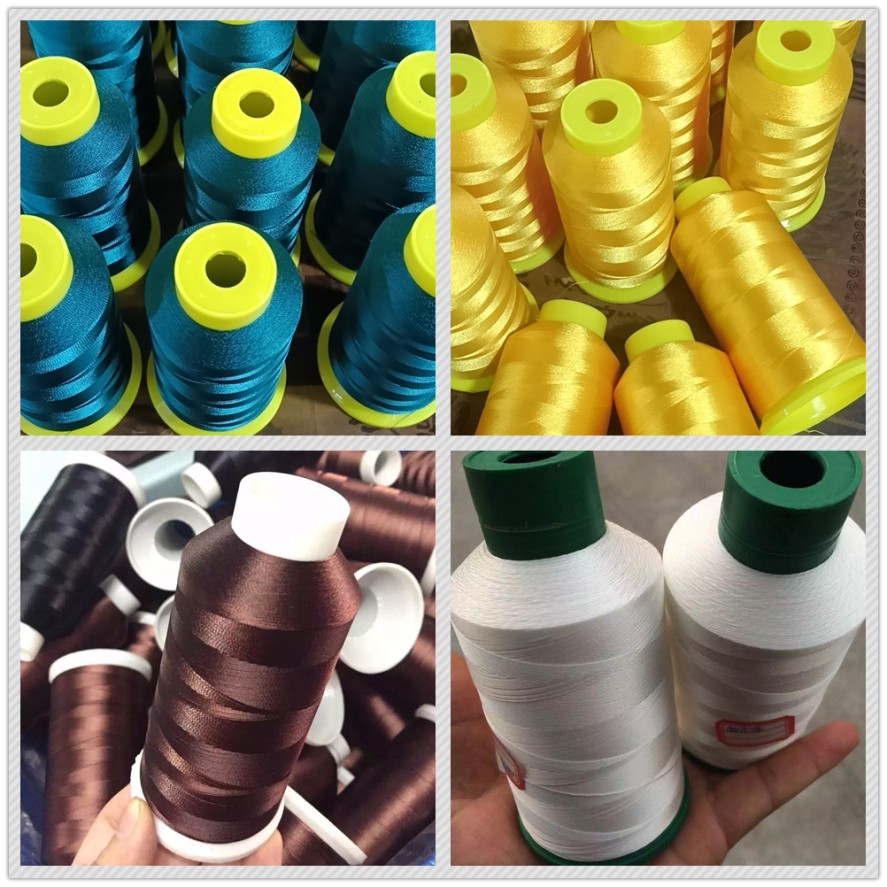

TS008O High speed thread winding machine is applicable for winding Cotton yarn, sewing thread , embroidery thread , nylon thread ,etc. This machine features availability of computer-based separate control of each single spindle , a frequency –change slotted spool yarn guide device , an electro-magnetic tension force control system , a pump-based cycling –type oiling device , etc. characteristics of a good shape formation , high efficiency , easy operation , assured safety and reliability and broad applicability , etc.. Best of all, each machine has 4 Mitsubishi inverter protection devices.

product details

product description

description1

description2

Specification

Mode	TS008O-A	TS008O-H	TS008O-Y
Con shape	Cone type	Cylinder type	Horn type
No of spindles	4	4	4
Cone for each spindle	2	2	2
Cone angle	0°-2°20′,3°, 5°57′	0°	2°20′-5°57′
Max. winding speed		1000mtrs/min
Max. winding-up Dia.		115mm
Measurement(M^3)		2100（L）×940（W）×1680（H）mm
Pattern round number		2.5～6
Machine weight		680kg
Warranty period		One year(Man-made damage excepted)

Computer yarn-length measurement.

1. Yarn length measured by computer, accuracy +1%.
2. Advanced touch panel, adjustable yarn winding speed, 400-1000m/min, can set winding length, winding quantity, tanker speed, etc., can be displayed in advanced touch panel.
3. Each spindle is equipped with electronic tension, which can be adjusted on the touch screen, and a manual tensioner.
4. Yarn pattern can be manually adjusted.
5. Non-contact light rod detector, stop yarn breaking automatically.
6. Each machine is equipped with independent oil drum, automatic oil circulation.
7. 30 years of machinery manufacturing, high efficiency, high quality, easy to operate, easy to maintain.

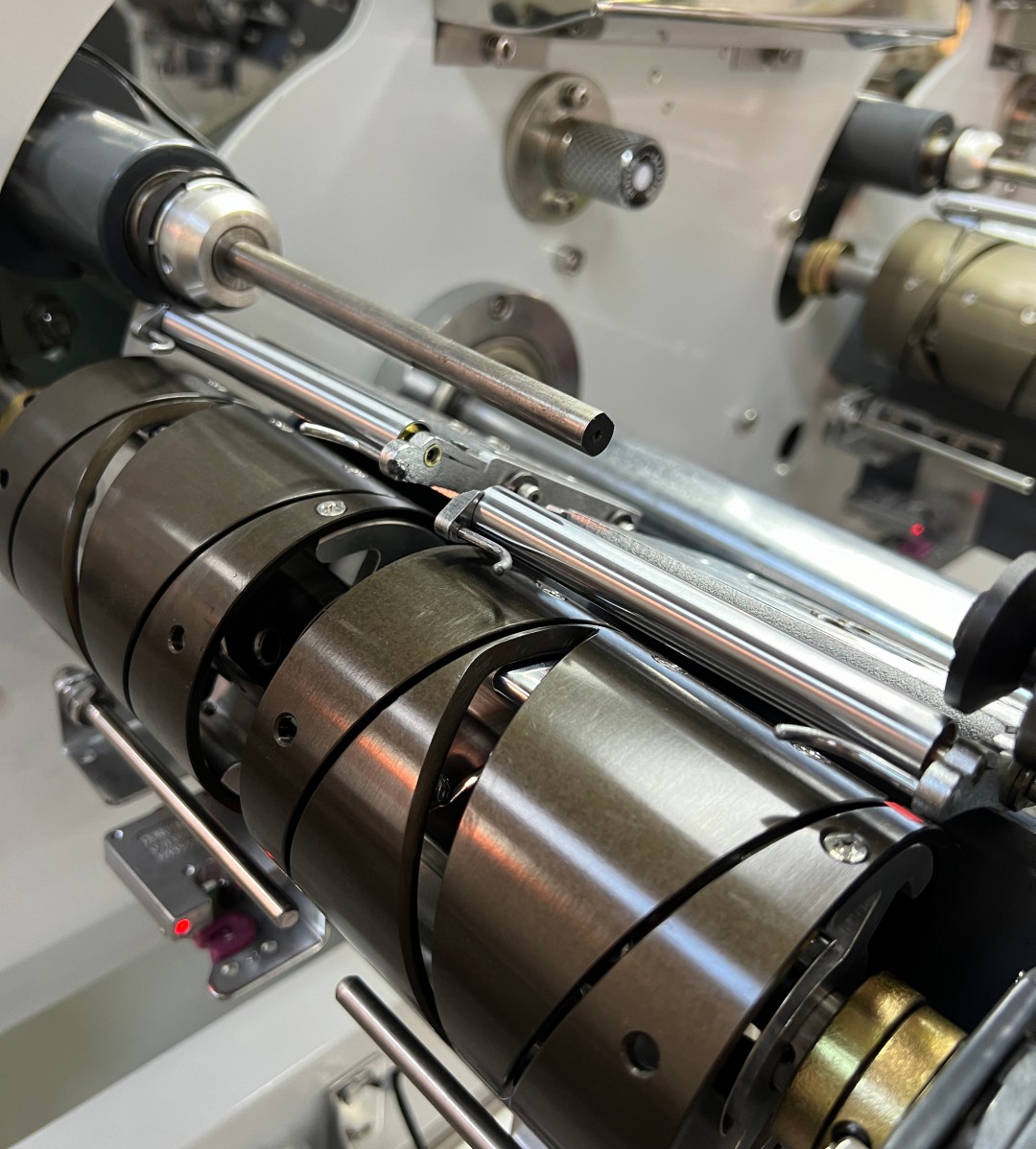

Drum thread-guidance system

1. High speed, low noise drum.
2. Precision alloy drum.

Automatic lubrications system.
1. Threads are being uniform lubricate, thanks to the constant yarn speed, the oiling roller speed is adjustable.
2. Release the tension from beginning to the end; it makes the winded package good appearances.
3. LED display easy operation.

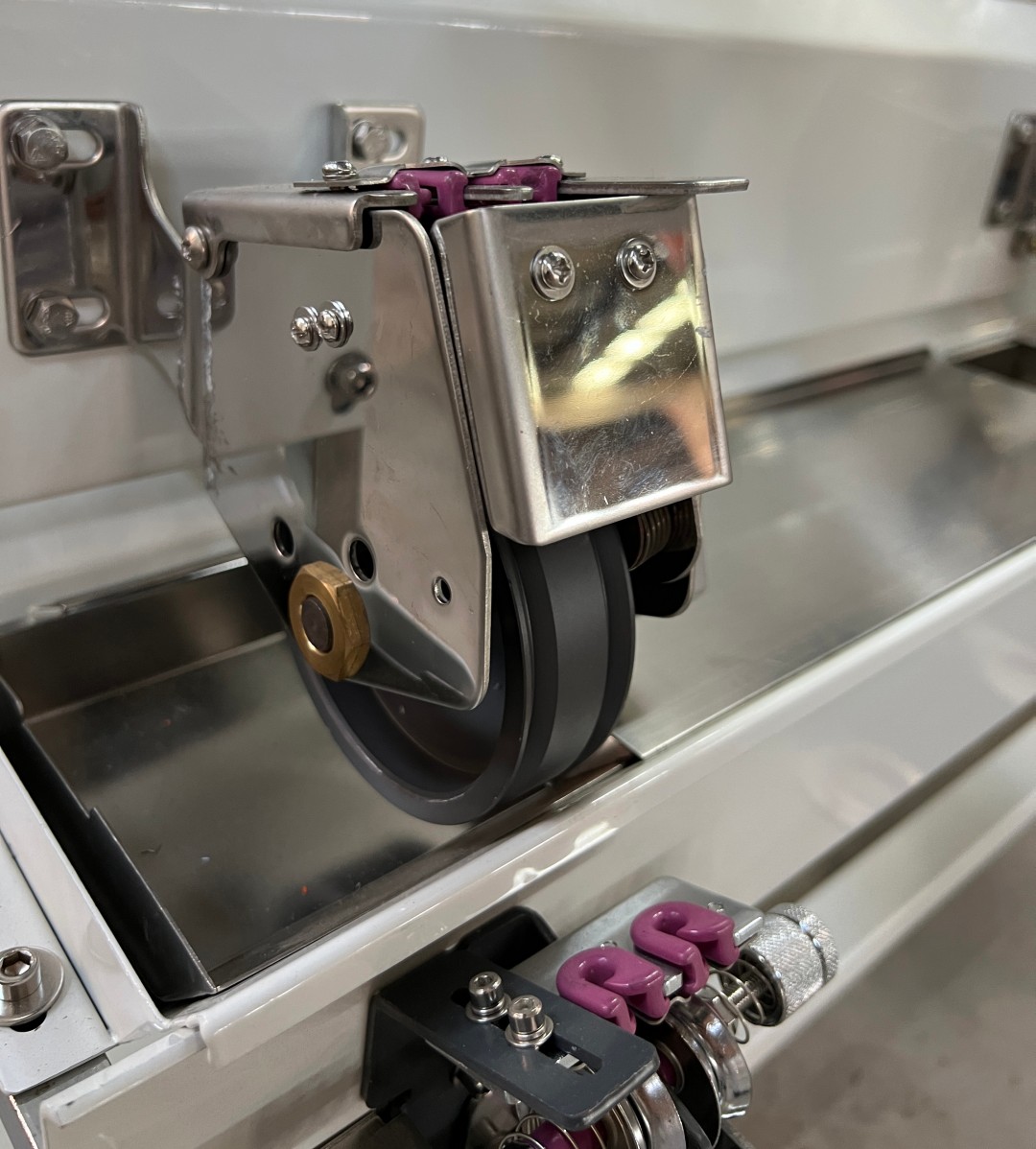

Circulating oil device

1. Keep always the full level of oil to each spindle.
2. Big-scale return oil trough and oil fender to filter without pollution and oil waste.
3. One oil filter is devoiced for every oil wheel to reduce the oil slinging out.
4. Each machine has its own oil tank
5. Detachable filter, easy to clean.

Configured Brand

Machine	TANGSHI

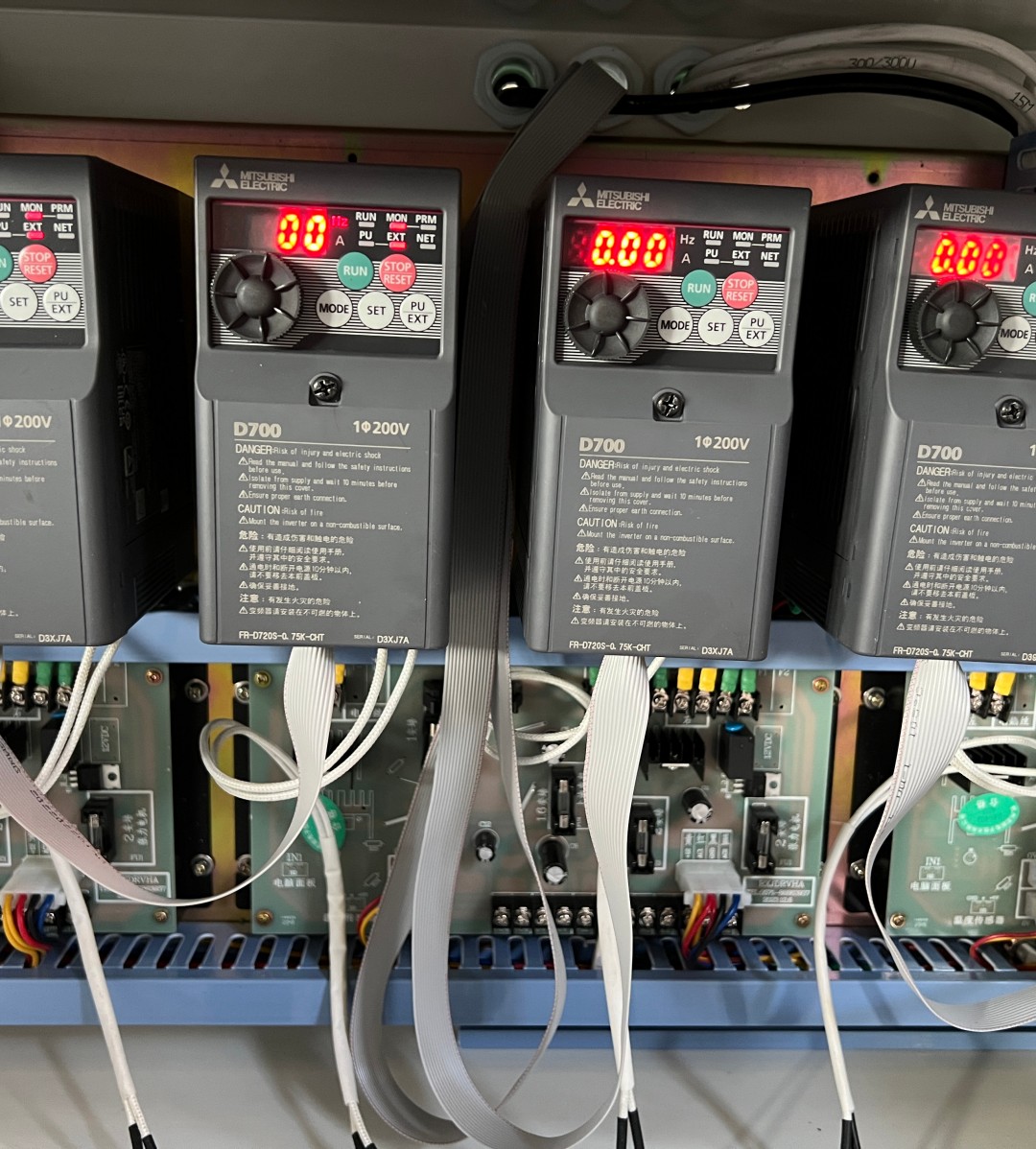

Inverter	Mitsubishi
LCD touch screen, sensor and other electronic control	hangzhou hongneng(more than 20 years of cooperation)
Motor	huangjie(more than 20 years of cooperation)
Bearing	NSK
Sheet metal	TANGSHI
