TS008D High Speed Big bobbin Winding Machine

Application introduction:

Used in winding varity of yarns, such as chemical yarn,cotton yarn, filament,low elastic yarn,carpet yarn etc,rewinding the package for next process,package formed well,high efficiency, edge firmed.

product details

product description

description1

description2

Technical Parameters

Bobbin type	10"(280-300mm)
Layout	Single-side, can be 48 spindles
Power Supply	Three phases 380V 50/60HZ or 220V
Driving	Every spindle per motor
Power Consumption	0.37KW/spindle
Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15

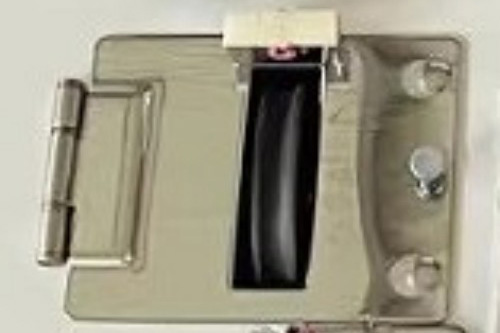

Yarn tension and waxing device	Every spindle has a yarn tension
Auto Stop Device	Each spindle install auto stop device
Electronic Anti-Stack	Inverter control

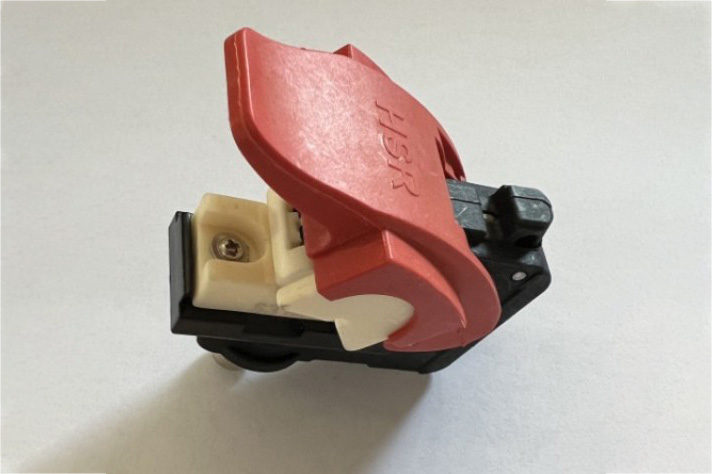

Cleaner device	Every spindle has a Mechanical Knife yarn cleaner
Air Splicer	Optional installed
Blower cleaner	Optional installed
Lighting System	contain
Dimensions	L 26000 x W 920 x H 1630 mm
Machine weight	6000KG
Warranty period	One year(Man-made damage excepted)

Parameters

1. Drive: every spindle per motor;

2. Winding speed: 300-1000 M/min;

3. Has function of auto stop when yarn break;

4. Package Dia≤ 300mm; Take-up Traverse: 252mm;

5. Each spindle with length counter, Length can be set;

6. Advanced control panel;

Basic functions

Single ingot single control, automatic stop of broken yarn, measuring length, setting length, 100-1000m/min(speed can be adjusted according to the yarn), anti-yarn overlap device, lighting device, anti-winding device (China patented products)

Configured Brand

Machine	TANGSHI
Inverter	Mitsubishi
LCD touch screen, sensor and other electronic control	hangzhou hongneng(more than 20 years of cooperation)
Motor	huangjie(more than 20 years of cooperation)
Bearing	NSK and HCH
Sheet metal	TANGSHI

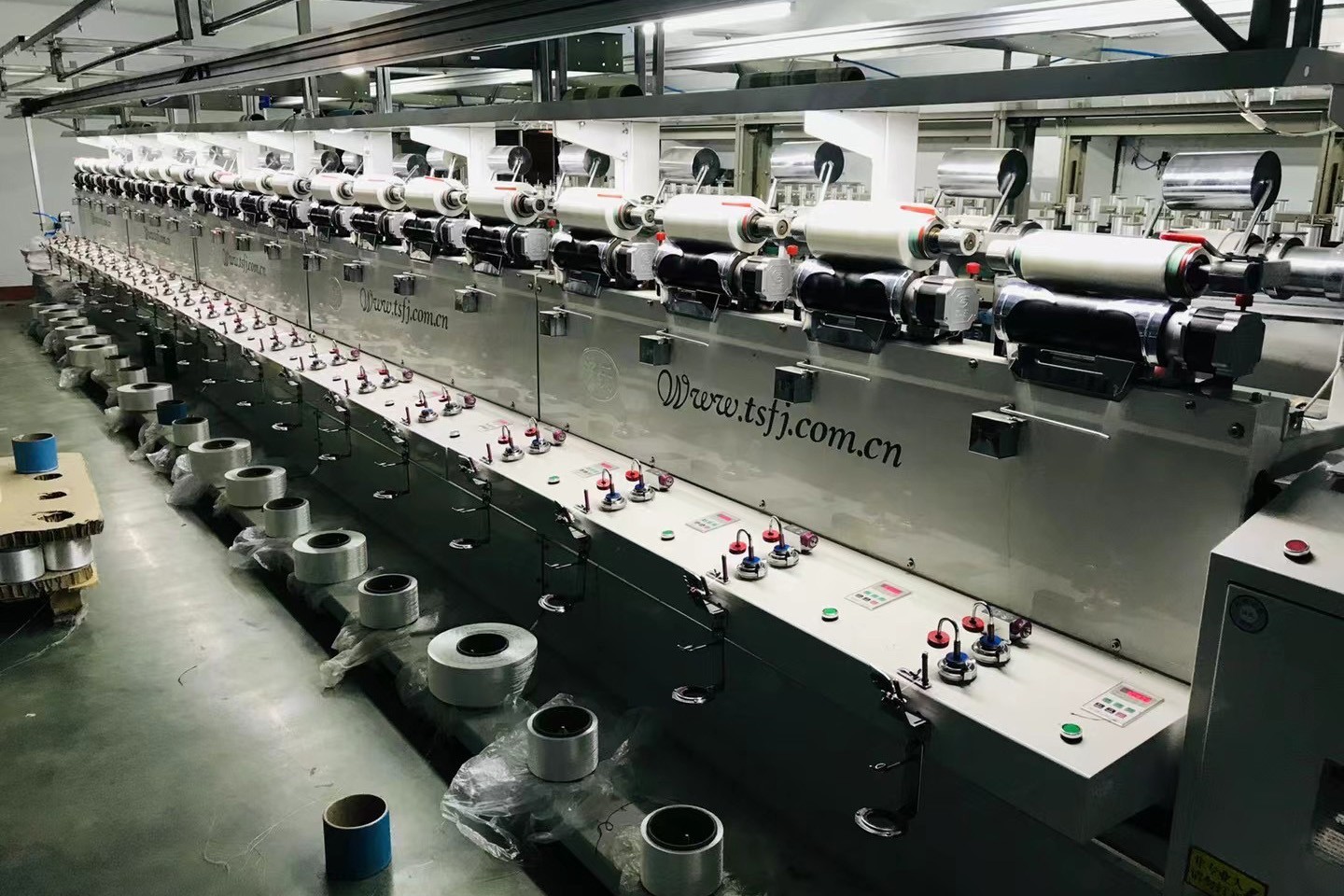

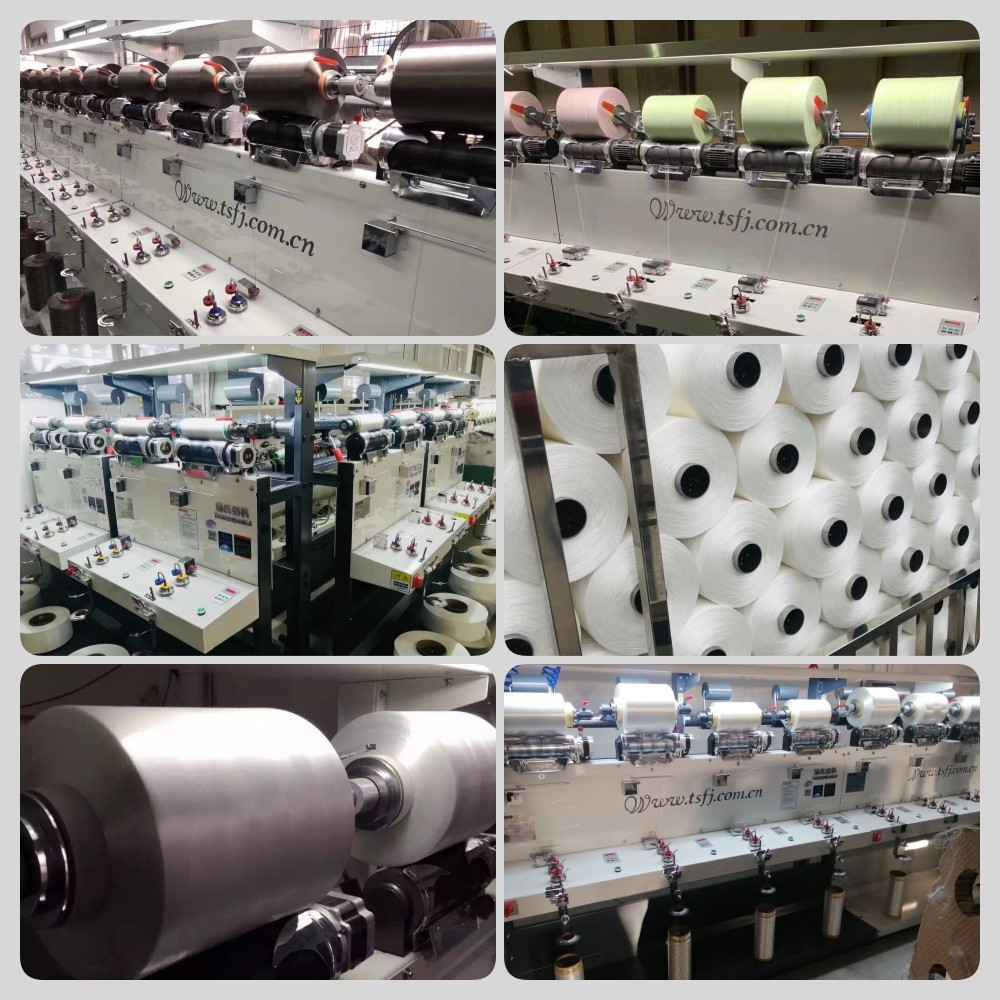

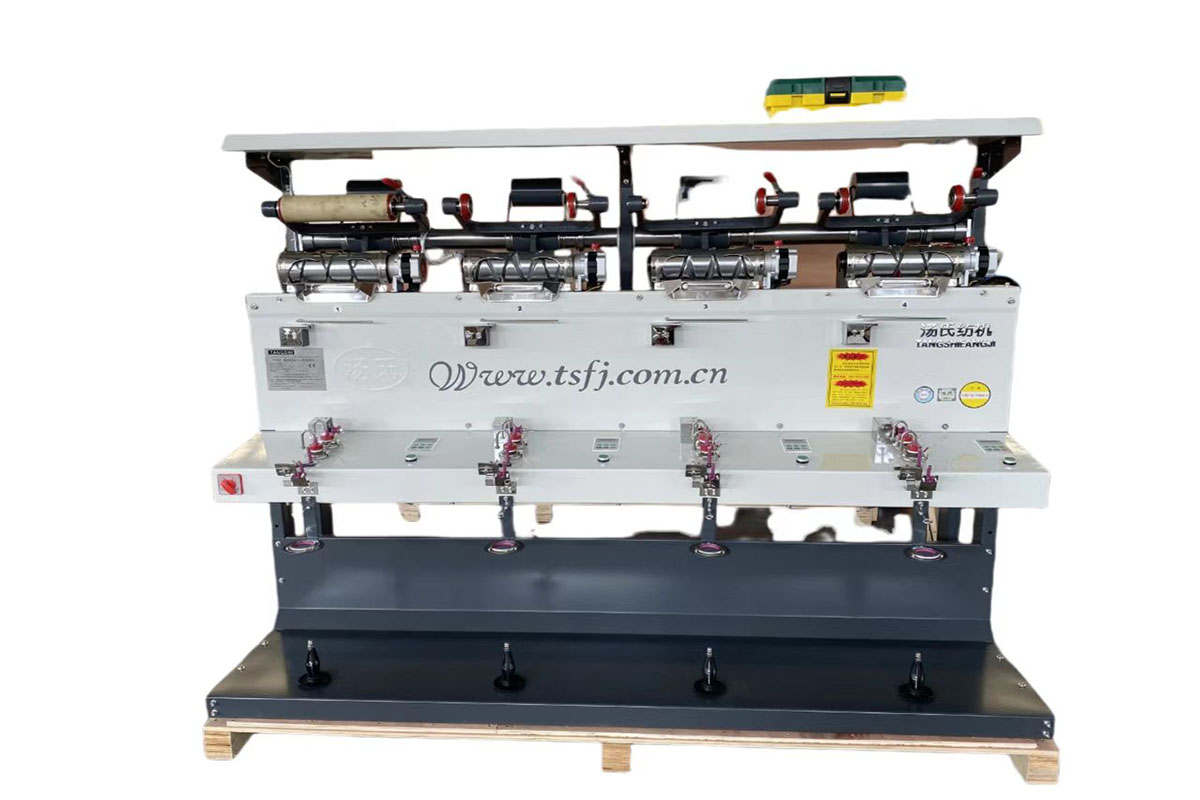

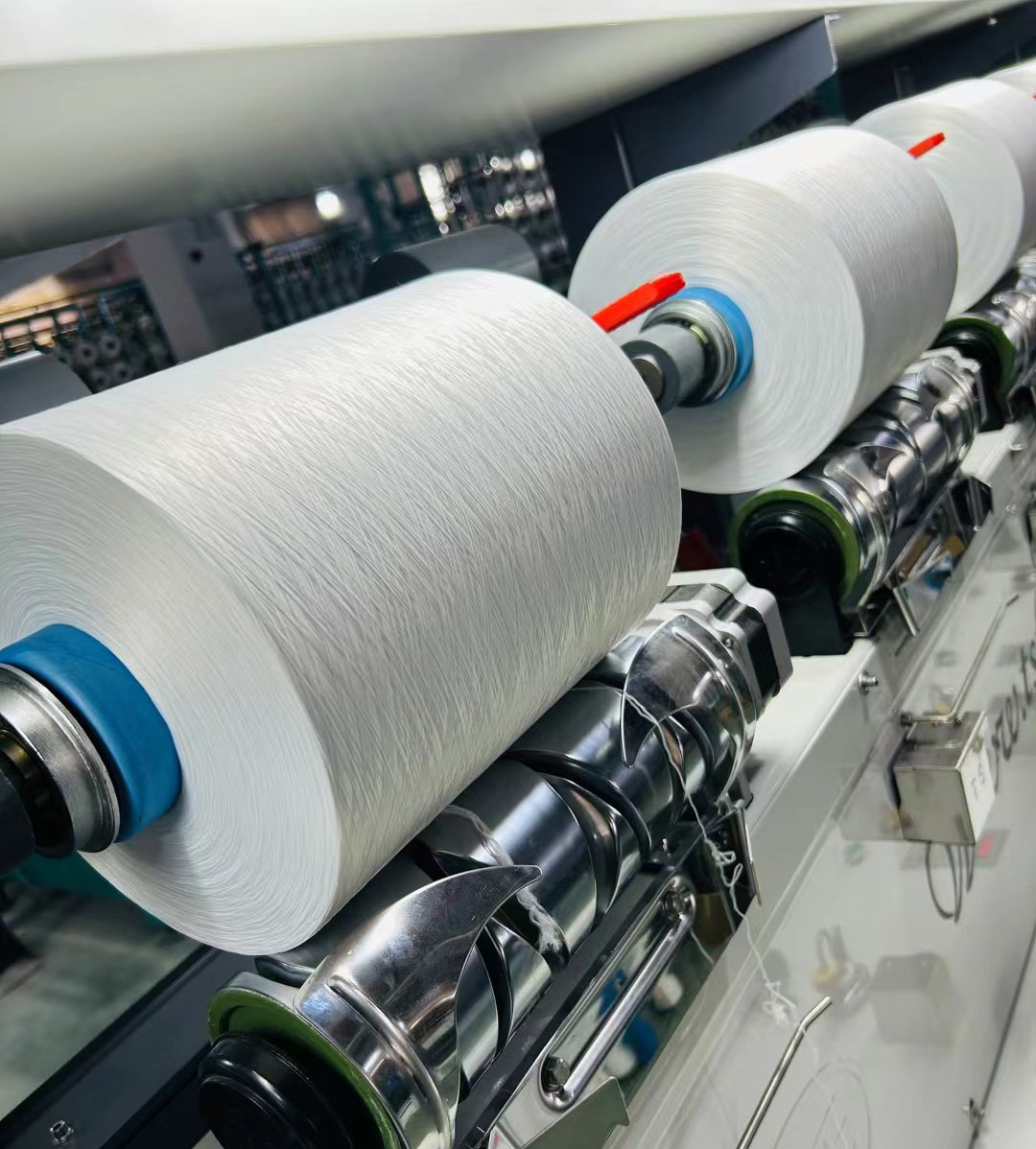

Machine display

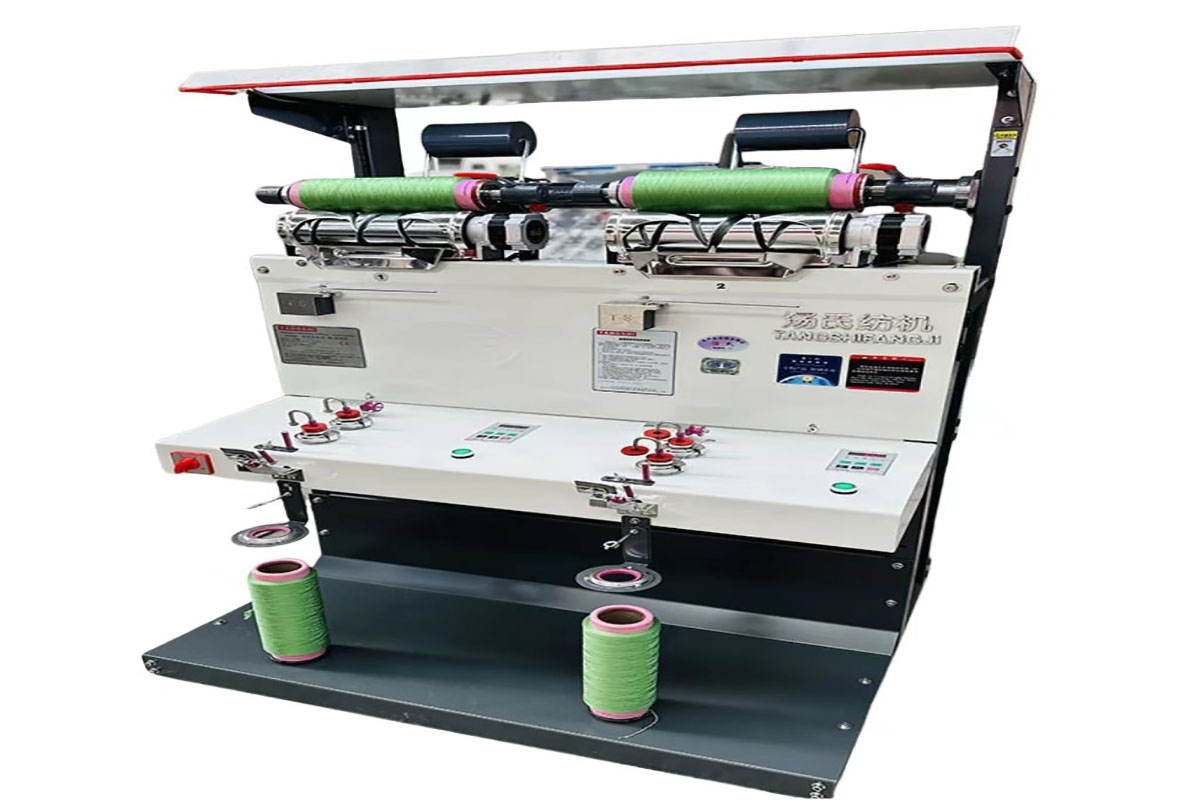

Retrofit function

Oiling device

Network nozzle
