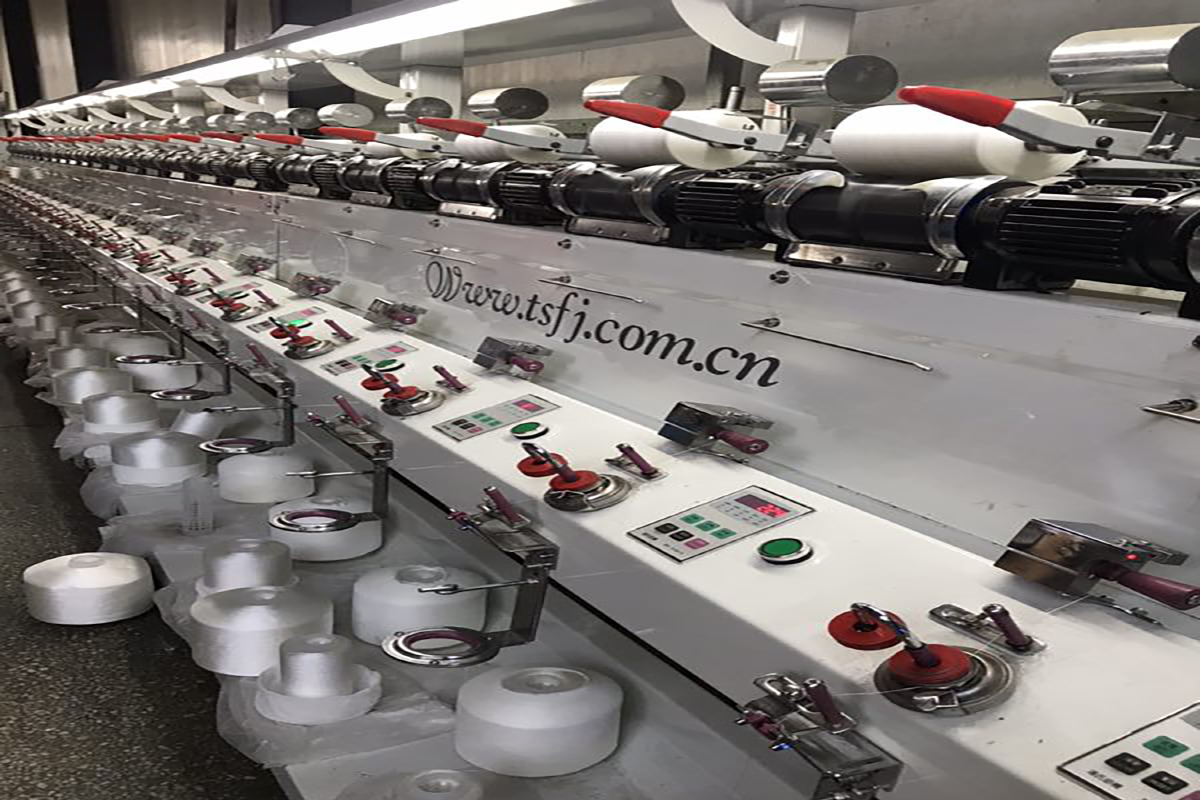

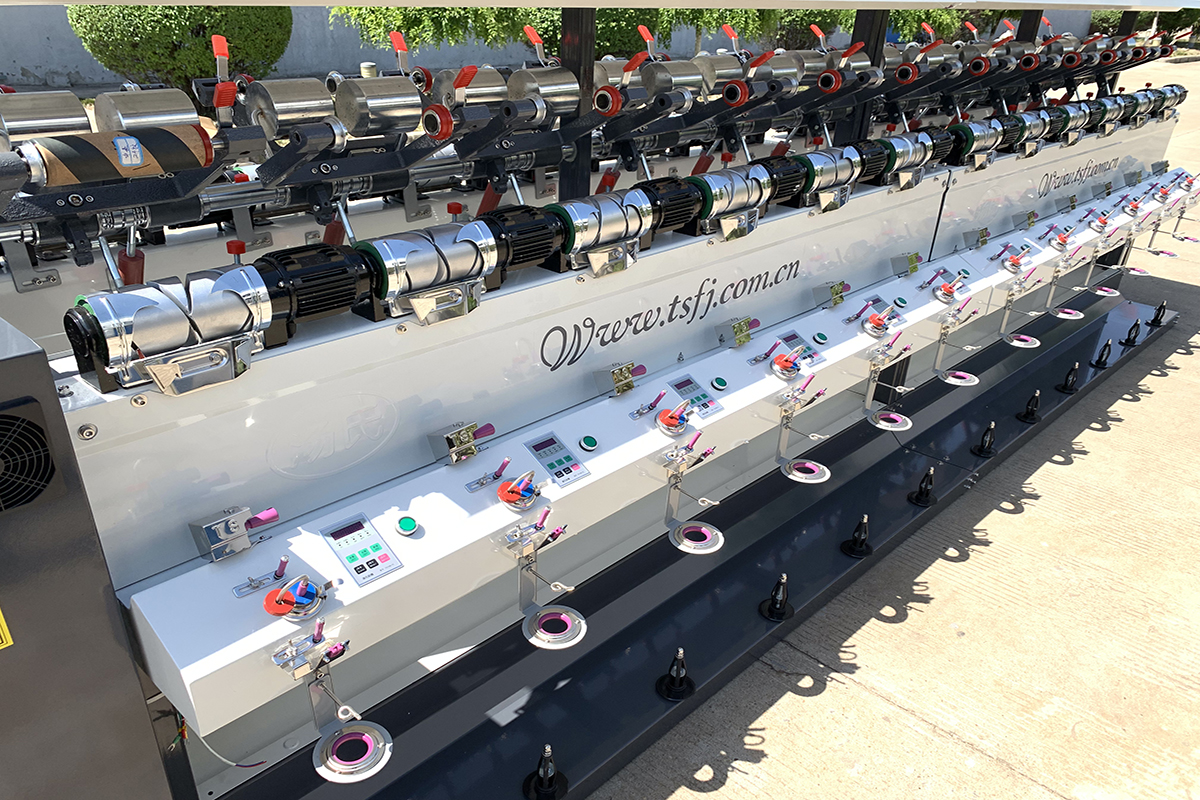

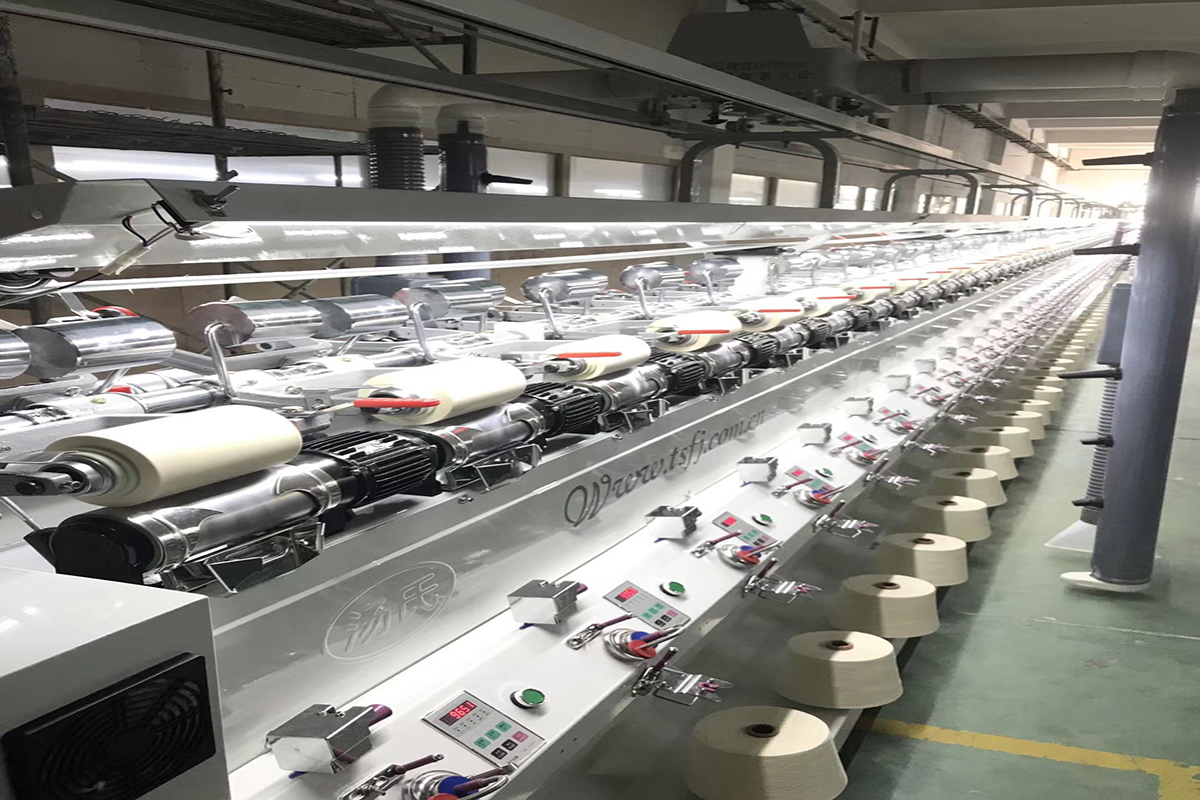

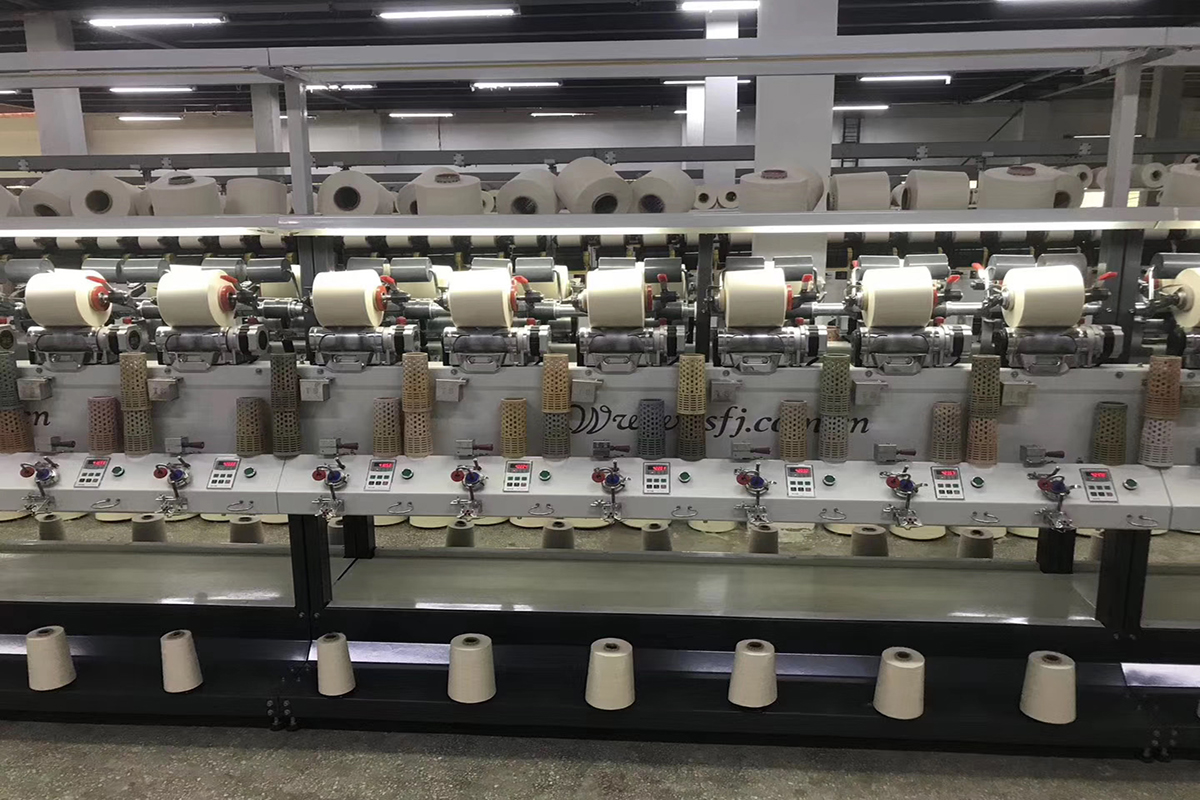

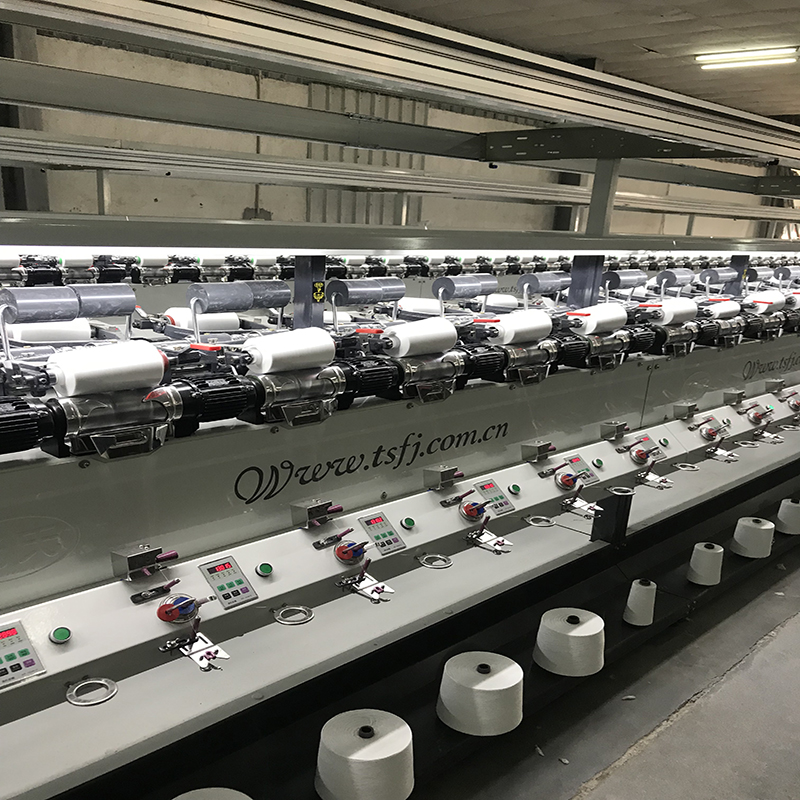

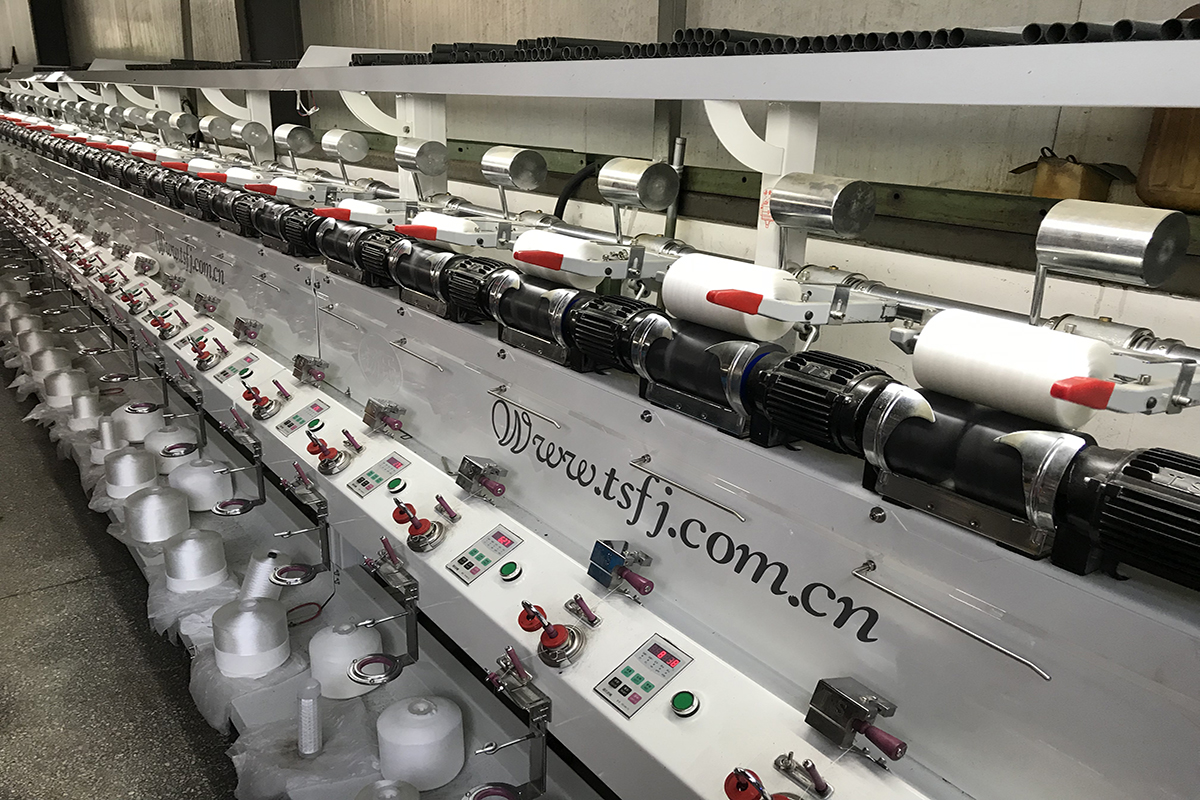

Sewing thread dyeing soft winding machine

Sewing thread dyeing soft winding machine

Machine introduction:

Used in winding varity of yarns, such as chemicalyarn, cotton yarn, filament, low elastic yarn etc, make thepackage soft for dye.

product details

product description

description1

description2

Technical Parameters

Bobbin type	6"(170mm)
Layout	Double-side, can be 120 spindles
Power Supply	Three phases 380V 50/60HZ or 220V
Driving	Every spindle per motor
Power Comsumption	0.09KW/spindle
Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Package Diameter	Max．250mm
Yarn tension and waxing device	Every spindle has a yarn tension
Auto Stop Device	Each spindle install auto stop device
Traverse Device	Mechanical Traverse suit for soft winding
Cleaner device	Every spindle has a Mechanical Knife yarn cleaner
Air Splicer	Optional installed
Blower cleaner	Optional installed
Lighting System	contain
Dimensions	L23000x W 1080 x H 1500 mm
Machine weight	5000KG
Warranty period	One year(Man-made damage excepted)

Parameters

1. Drive: every spindle per motor;

2. Winding speed 100-1000m/min: Cotton: about 800M/min, Fiber: about 600 M/min;

3. Has function of Anti-Hard-Edge and Electronic Anti-Stack;

4. Package Dia≤ 220mm; Take-up length: 152mm;

5. Each spindle with length counter;

6. Advanced control panel;

Basic functions

Single ingot single control, automatic stop of broken yarn, measuring length, setting length, 100-1000m/min(speed can be adjusted according to the yarn), anti-yarn overlap device, lighting device, anti-winding device (China patented products)

Configured Brand

Machine	TANGSHI
Inverter	Mitsubishi
LCD touch screen, sensor and other electronic control	hangzhou hongneng(more than 20 years of cooperation)
Motor	huangjie(more than 20 years of cooperation)
Bearing	NSK and HCH
Sheet metal	TANGSHI

Yarn Dyeing Factory Winding

Sewing thread dyeing soft winding machine

Yarn dyeing intelligent high speed soft winding machine

40/2,30/2 Various sewing threads winding machine

High speed double tube meter count sewing thread winding machine

Angled yarn Precision winder

High stretch yarn Precision winder

Knitwear cotton yarn wax winding machine

Sweater factory yarn waxing winding machine

The thread factory sewing thread winding machine

Spinning mill cotton yarn winding machine

Sewing thread dyeing soft winding machine

Technical Parameters

Parameters

Basic functions

Configured Brand

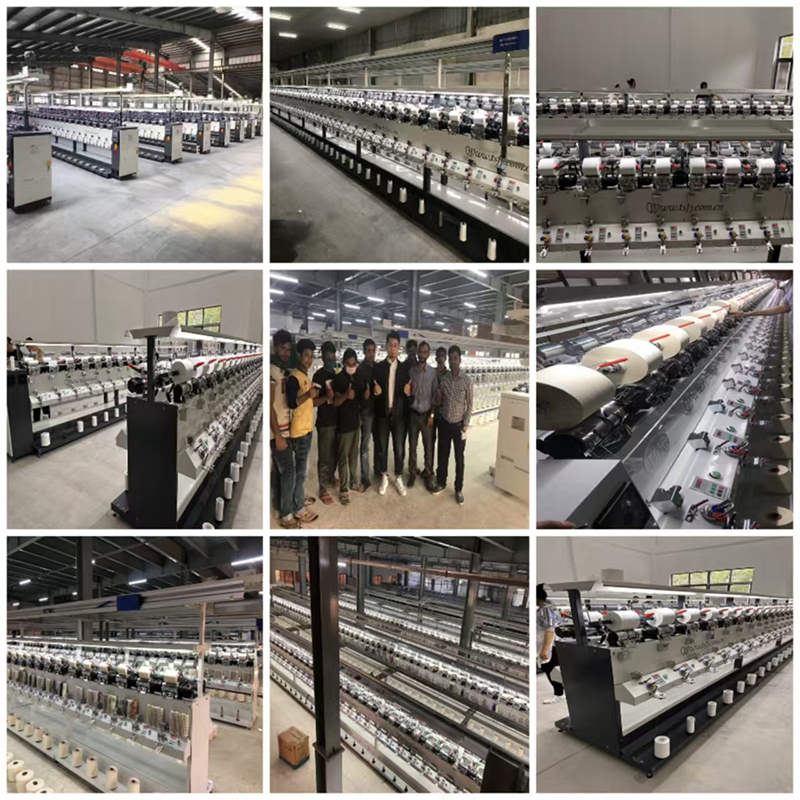

Machine display

Leave Your Message

Yarn dyeing intelligent high speed soft winding machine

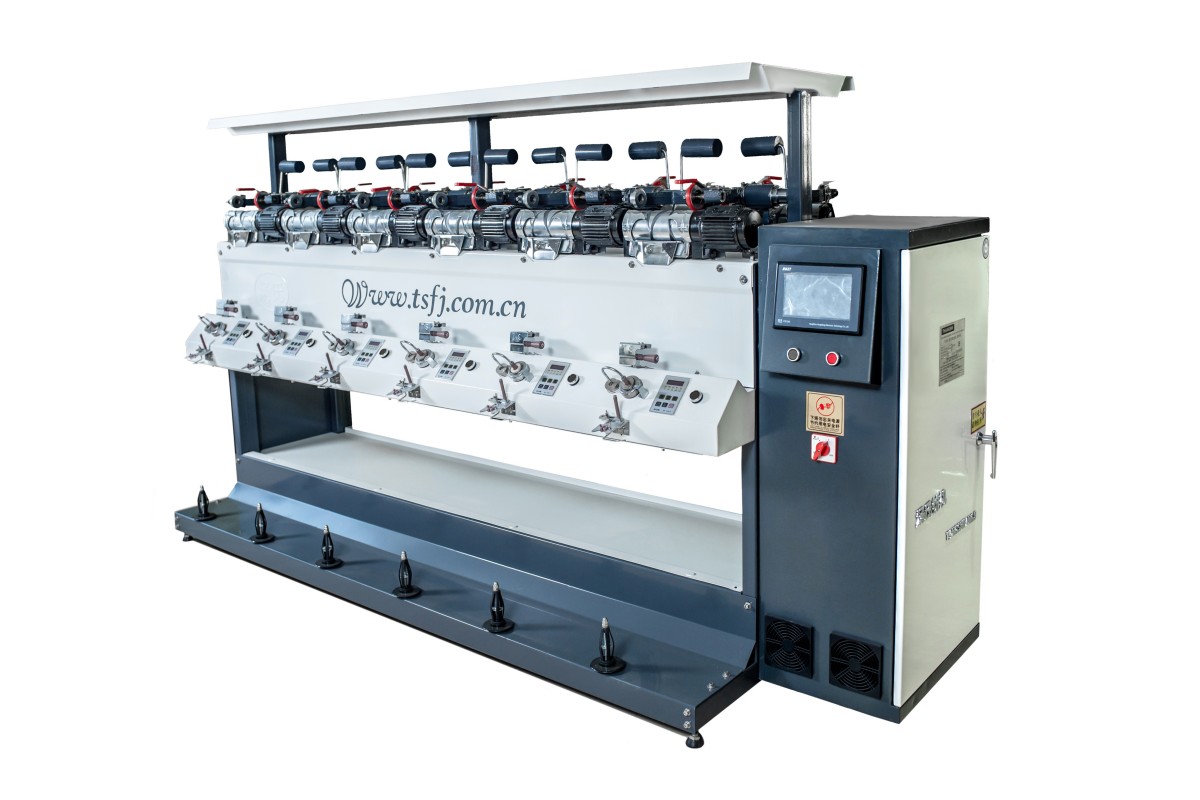

TS008S High speed Soft Winding Machine
