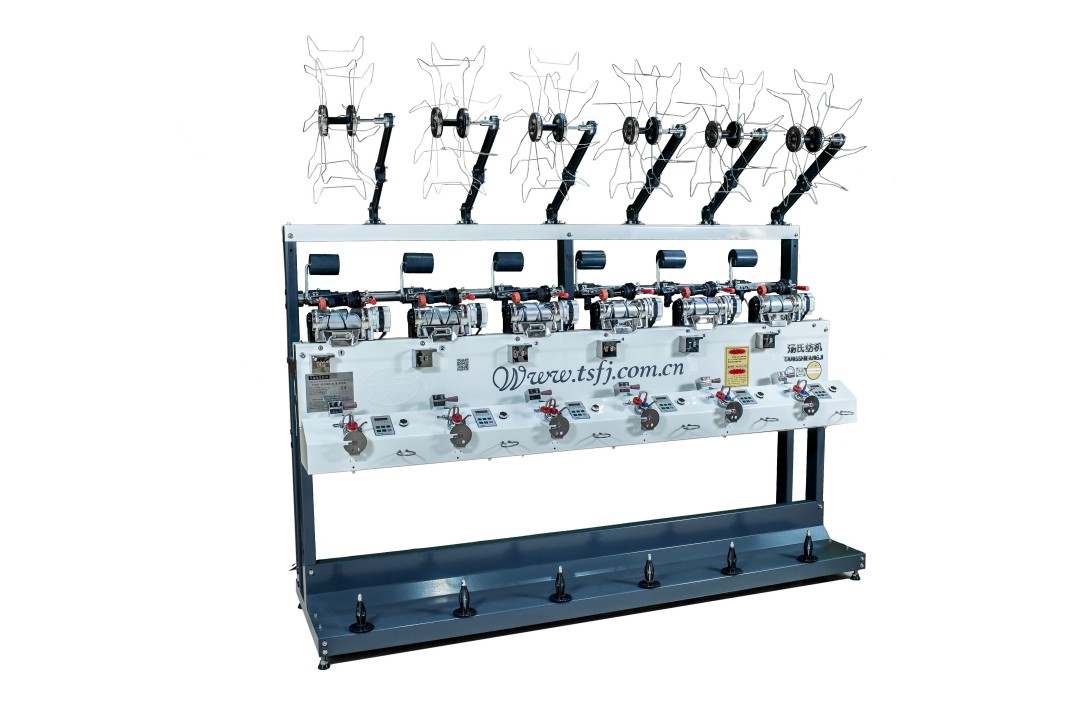

Polyester nylon Hank to cone winding machine

Polyester nylon Hank to cone winding machine

Application introduction:

It is used for winding yarn on paper tube (plastic tube) after dyeing in Hank yarn, and is used in knitting factory (other yarn factory). Suitable for winding cotton yarn, polyester, cashmere, carpet yarn, acrylic, PP yarn, filament yarn and so on.

product details

product description

description1

description2

Technical Parameters

Bobbin type	6"(170mm)
Layout	Double-side, can be 120 spindles
Power Supply	Three phases 380V 50/60HZ or 220V
Driving	Every spindle per motor
Power Consumption	0.09KW/spindle
Take-up package	Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15
Yarn tension and waxing device	Every spindle has a yarn tension
Auto Stop Device	Each spindle install auto stop device
Electronic Anti-Stack	Inverter control
Cleaner device	Every spindle has a Mechanical Knife yarn cleaner
Air Splicer	Optional installed
Blower cleaner	Optional installed
Overfeeding device	Optional installed
Lighting System	contain
Dimensions	L 23000 x W 1150 x H 1500 mm
Machine weight	5000KG
Warranty period	One year(Man-made damage excepted)

Parameters

1. Drive: every spindle per motor;

2. Winding speed: 300-1000 M/min (Different yarns can withstand different speeds);

3. Has function of auto stop when yarn break;

4. Package Dia≤ 250mm; Take-up Traverse: 147 or 152mm;( Others can be customized);

5. Each spindle with length counter, Length can be set;

6. Advanced control panel;

Basic functions

Single ingot single control, automatic stop of broken yarn, measuring length, setting length, 100-1000m/min(speed can be adjusted according to the yarn), anti-yarn overlap device, lighting device, anti-winding device (China patented products)，hank to cone.

Configured Brand

Machine	TANGSHI
Inverter	Mitsubishi
LCD touch screen, sensor and other electronic control	hangzhou hongneng(more than 20 years of cooperation)
Motor	huangjie(more than 20 years of cooperation)
Bearing	NSK and HCH
Sheet metal	TANGSHI

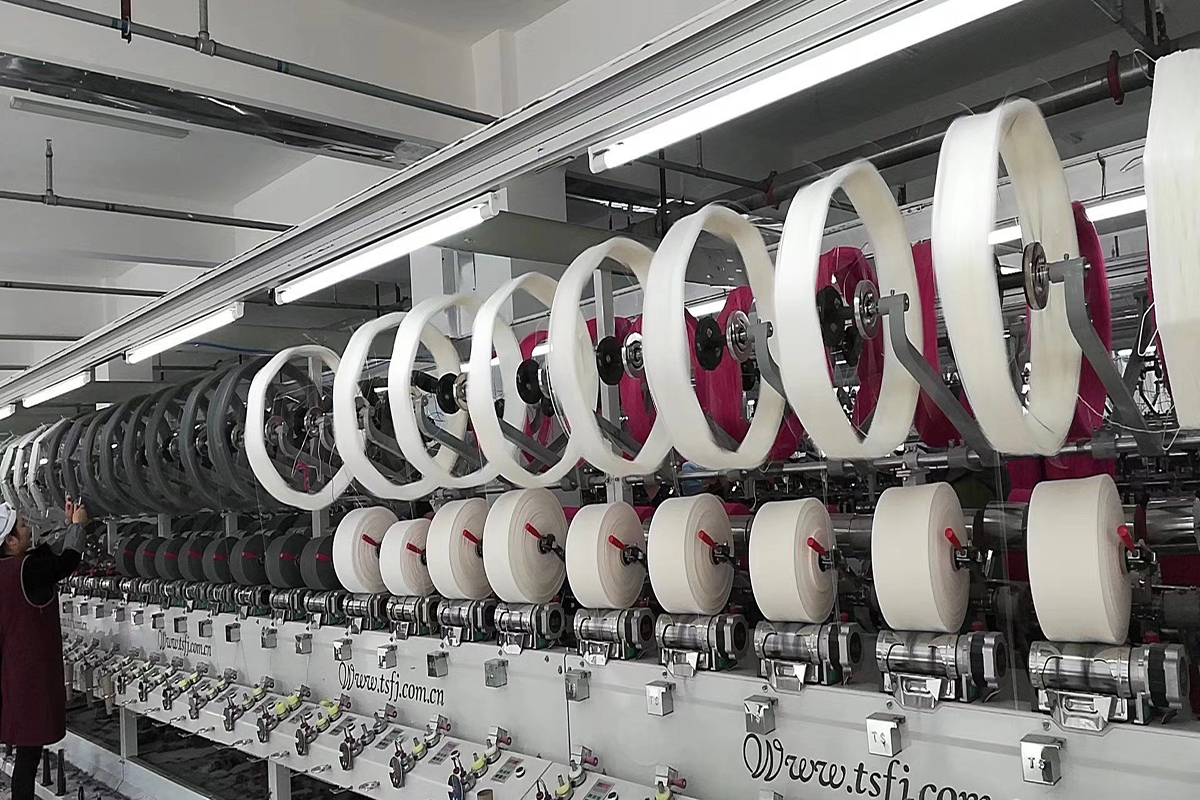

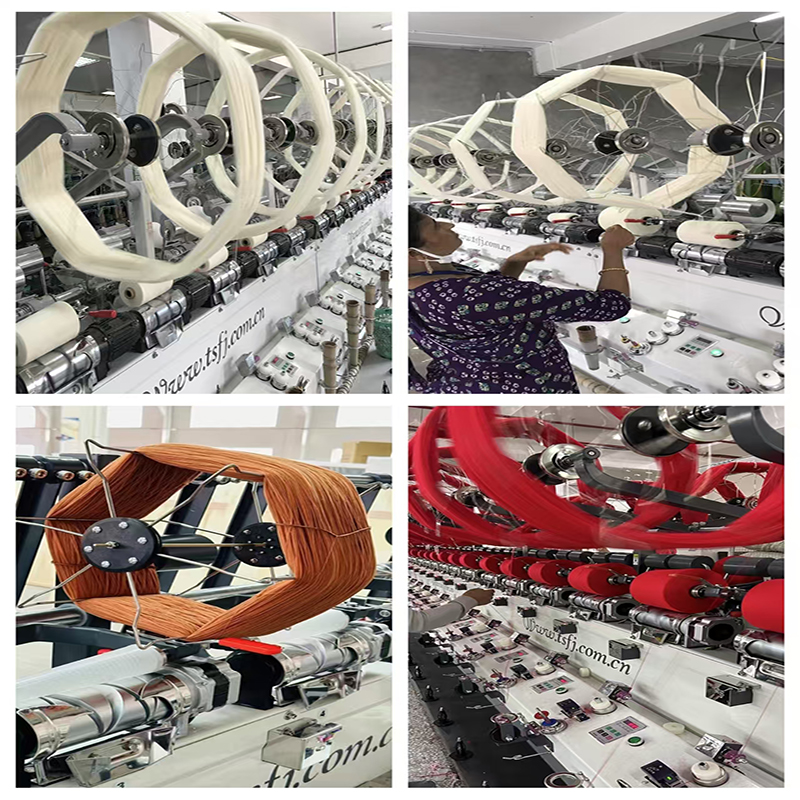

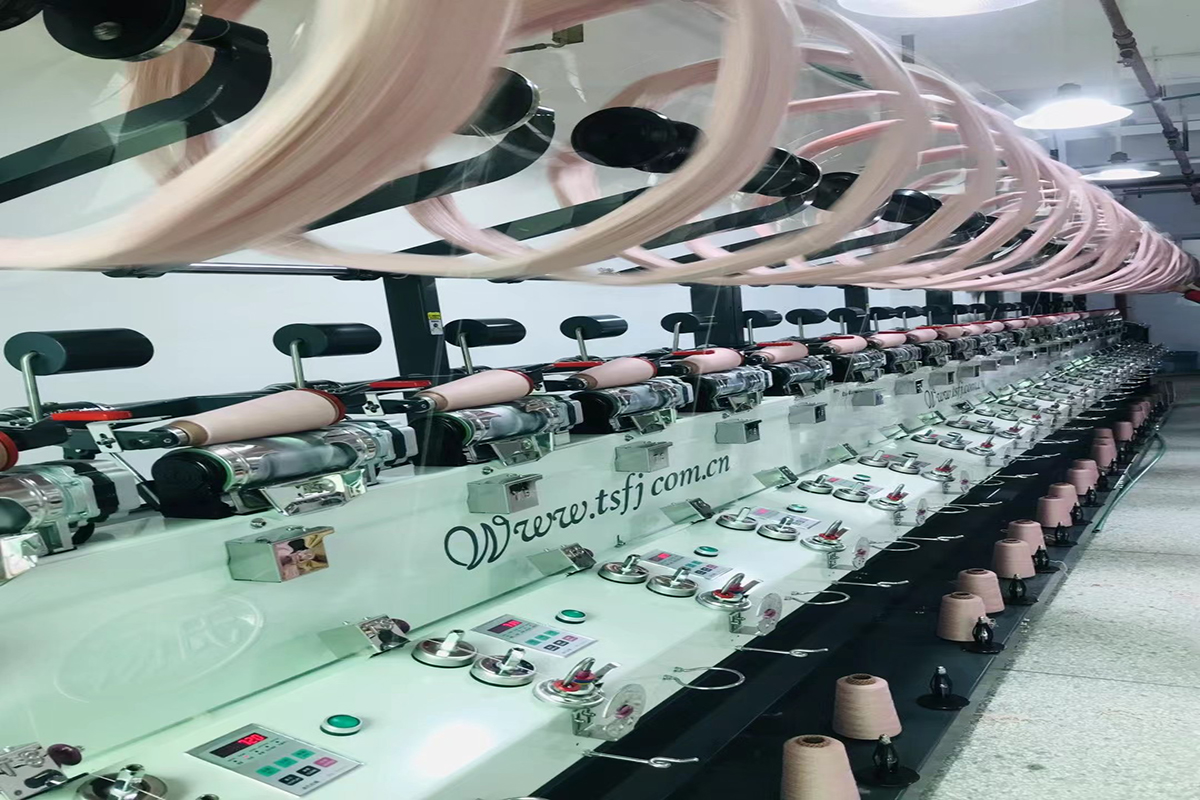

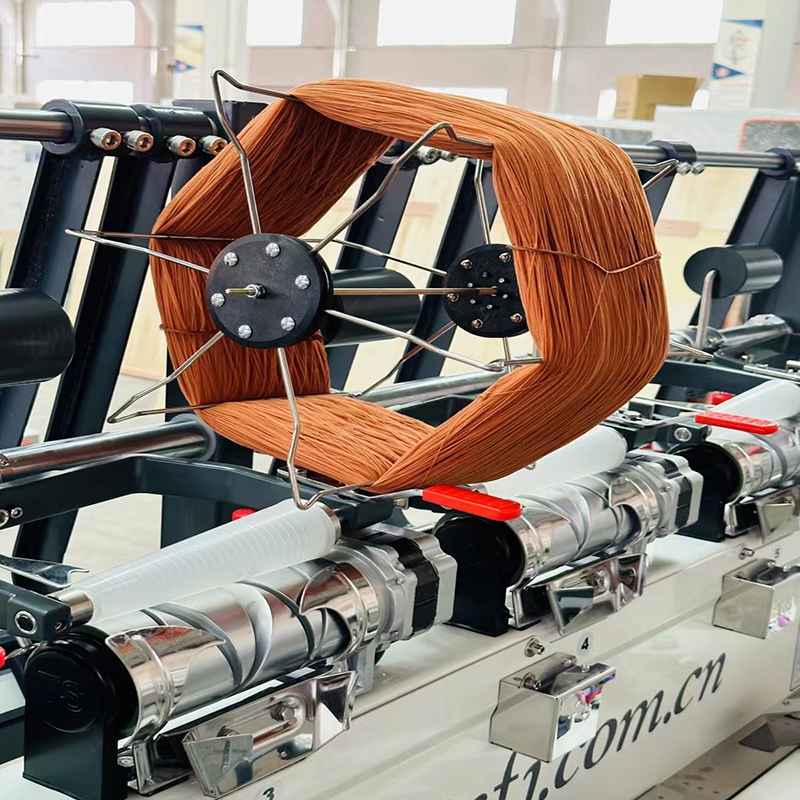

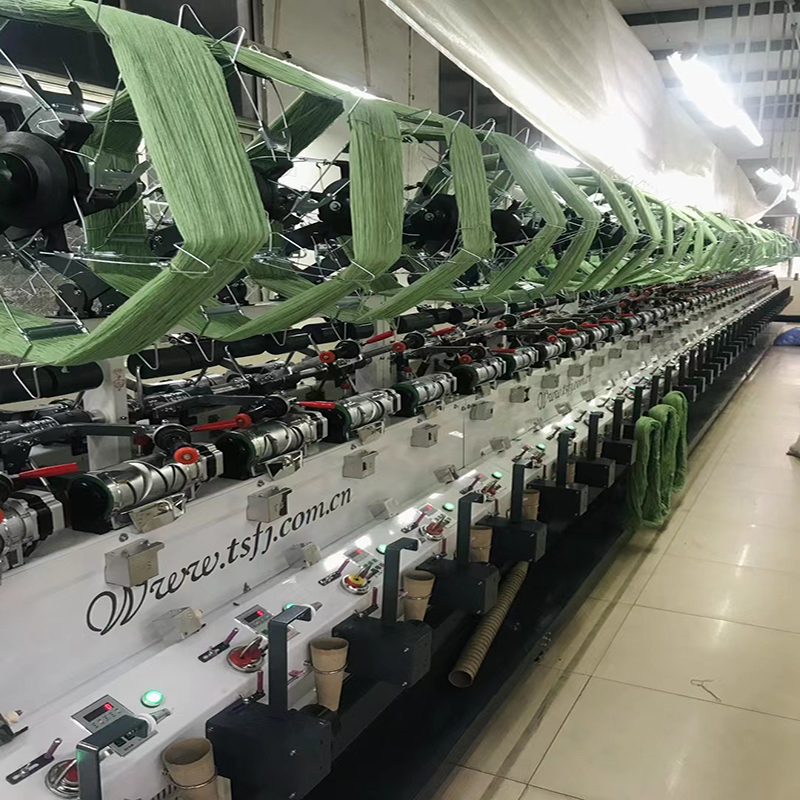

Machine display
