High speed double tube meter count sewing thread winding machine

Sewing Thread Embroidery Thread Winding

Products Categories
Featured Products
Sewing thread dyeing soft winding machine

Sewing thread dyeing soft winding machine
Yarn dyeing intelligent high speed soft winding machine

Yarn dyeing intelligent high speed soft winding machine
40/2,30/2 Various sewing threads winding machine

40/2,30/2 Various sewing threads winding machine
High speed double tube meter count sewing thread winding machine

High speed double tube meter count sewing thread winding machine
Angled yarn Precision winder

Angled yarn Precision winder
High stretch yarn Precision winder

High stretch yarn Precision winder
Knitwear cotton yarn wax winding machine

Knitwear cotton yarn wax winding machine
Sweater factory yarn waxing winding machine

Sweater factory yarn waxing winding machine
The thread factory sewing thread winding machine

The thread factory sewing thread winding machine
Spinning mill cotton yarn winding machine

Spinning mill cotton yarn winding machine
01
High speed double tube meter count sewing thread winding machine
40/2,30/2 Various sewing threads winding machine
High speed double tube meter count sewing thread winding machine
High speed double tube meter count sewing thread winding machine

High speed double tube meter count sewing thread winding machine

Machine Application:

TS008O High speed thread winding machine is applicable for winding Cotton yarn, sewing thread , embroidery thread , nylon thread ,etc. This machine features availability of computer-based separate control of each single spindle , a frequency –change slotted spool yarn guide device , an electro-magnetic tension force control system , a pump-based cycling –type oiling device , etc. characteristics of a good shape formation , high efficiency , easy operation , assured safety and reliability and broad applicability , etc.. Best of all, each machine has 4 Mitsubishi inverter protection devices.

    Contact us
    product details
    product description

    description1

    description2

    Specification

    Mode

    TS008O-A

    TS008O-H

    TS008O-Y

    Con shape

    Cone type

    Cylinder type

    Horn type

    No of spindles

    4

    4

    4

    Cone for each spindle

    2

    2

    2

    Cone angle

    0°-2°20′,3°, 5°57′

    0°

    2°20′-5°57′

    Max. winding speed

    1000mtrs/min

    Max. winding-up Dia.

    115mm

    Measurement(M^3)

    2100（L）×940（W）×1680（H）mm

    Pattern round number

    2.5～6

    Machine weight

    680kg

    Warranty period

    One year(Man-made damage excepted)
    High speed double tube meter count sewing thread winding machine

    Computer yarn-length measurement.

    1. Yarn length measured by computer, accuracy +1%.
    2. Advanced touch panel, adjustable yarn winding speed, 400-1000m/min, can set winding length, winding quantity, tanker speed, etc., can be displayed in advanced touch panel.
    3. Each spindle is equipped with electronic tension, which can be adjusted on the touch screen, and a manual tensioner.
    4. Yarn pattern can be manually adjusted.
    5. Non-contact light rod detector, stop yarn breaking automatically.
    6. Each machine is equipped with independent oil drum, automatic oil circulation.
    7. 30 years of machinery manufacturing, high efficiency, high quality, easy to operate, easy to maintain.
    High speed double tube meter count sewing thread winding machine

    Drum thread-guidance system

    1. High speed, low noise drum.
    2. Precision alloy drum.

    Automatic lubrications system.
    1. Threads are being uniform lubricate, thanks to the constant yarn speed, the oiling roller speed is adjustable.
    2. Release the tension from beginning to the end; it makes the winded package good appearances.
    3. LED display easy operation.
    yarn

    Circulating oil device

    1. Keep always the full level of oil to each spindle.
    2. Big-scale return oil trough and oil fender to filter without pollution and oil waste.
    3. One oil filter is devoiced for every oil wheel to reduce the oil slinging out.
    4. Each machine has its own oil tank
    5. Detachable filter, easy to clean.

    Configured Brand

    Machine

    TANGSHI

    Inverter

    Mitsubishi

    LCD touch screen, sensor and other electronic control

    hangzhou hongneng(more than 20 years of cooperation)

    Motor

    huangjie(more than 20 years of cooperation)

    Bearing

    NSK

    Sheet metal

    TANGSHI

    Machine display

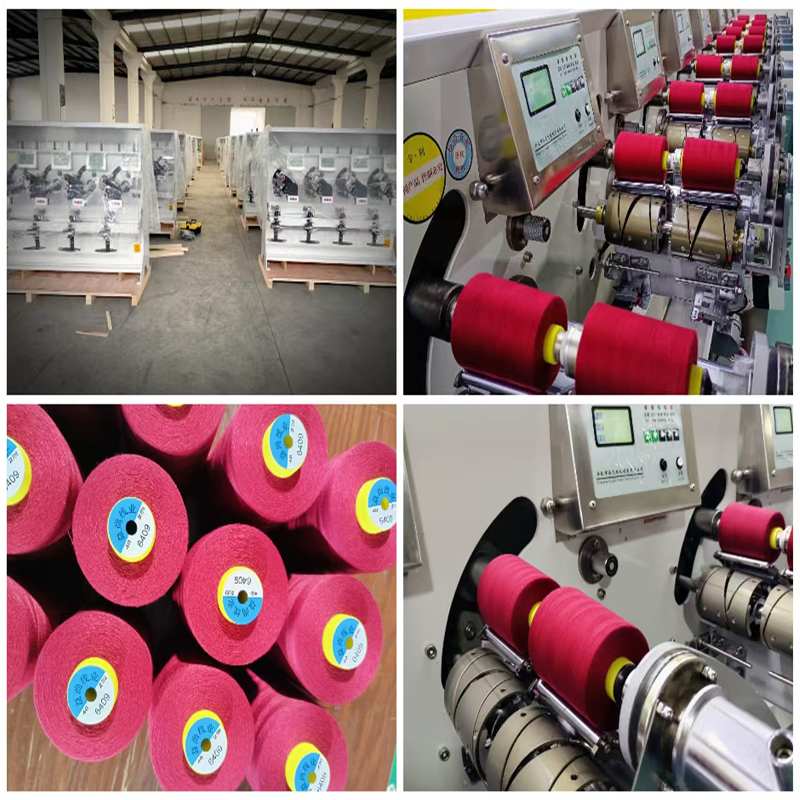

    微信图片_20250225133431
