Precision Winding Machine
01

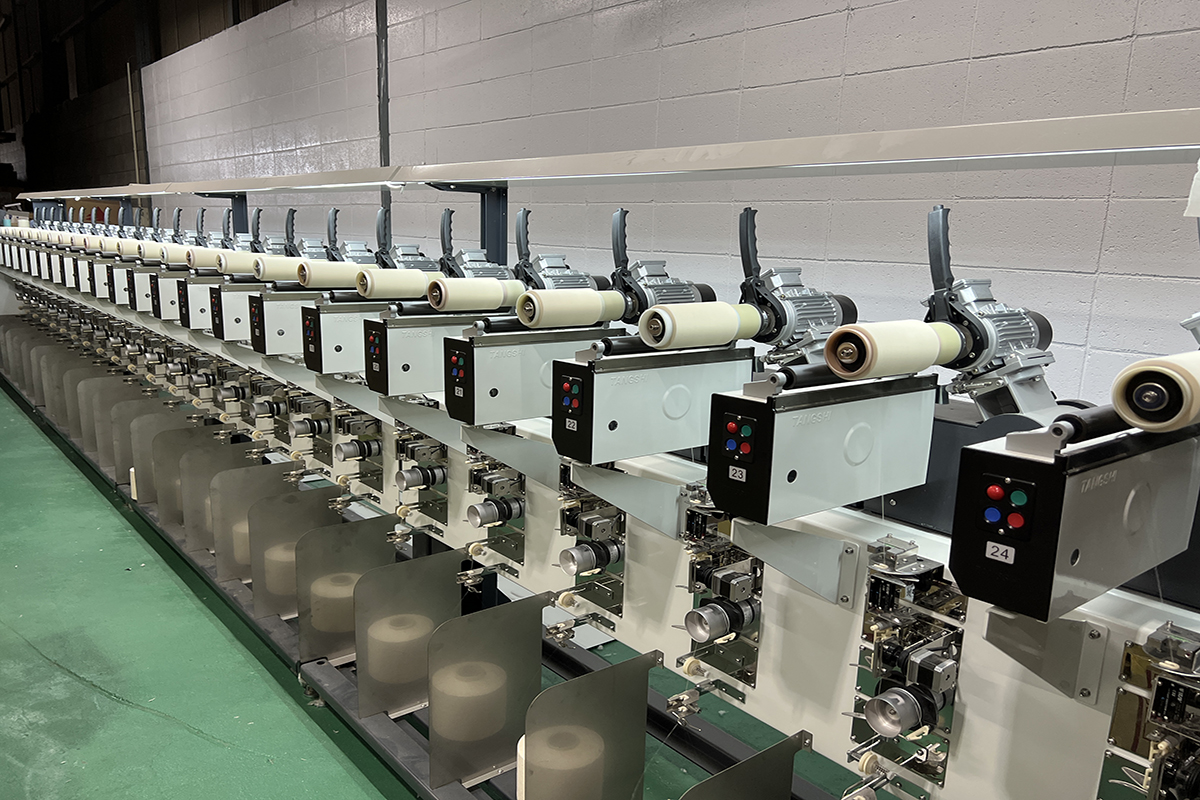

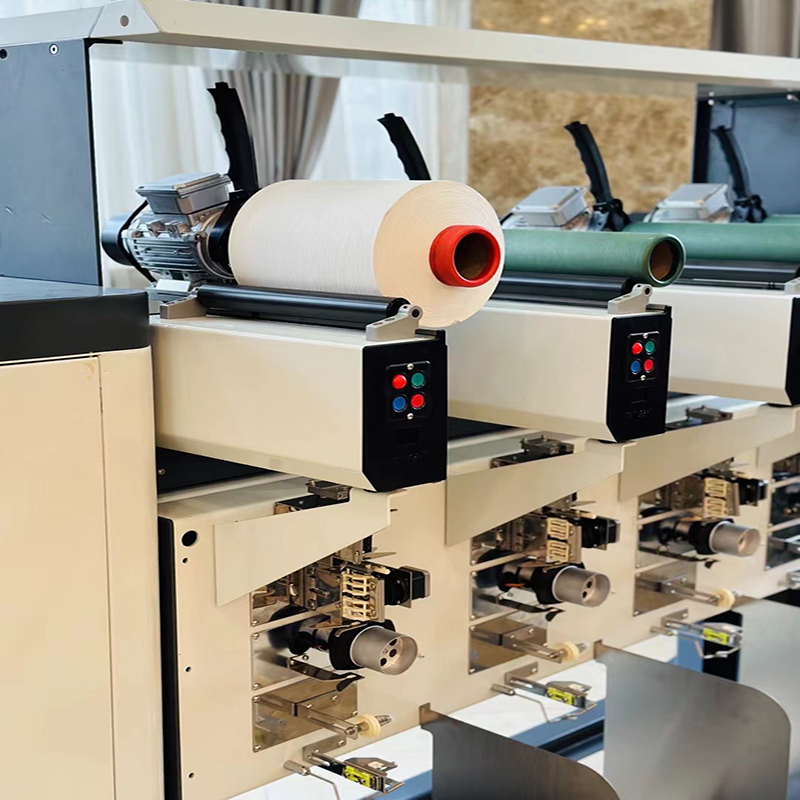

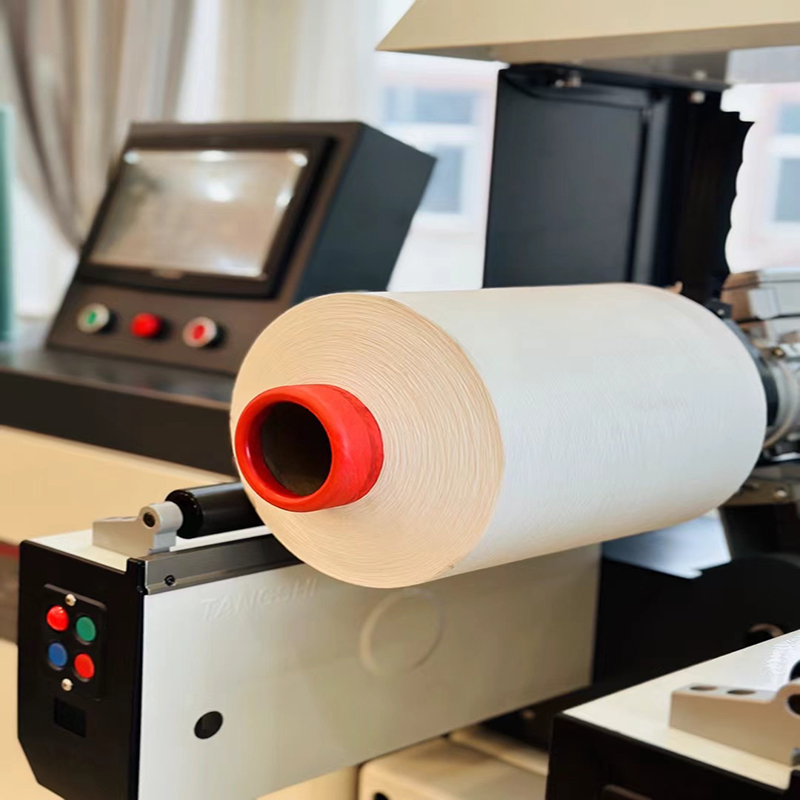

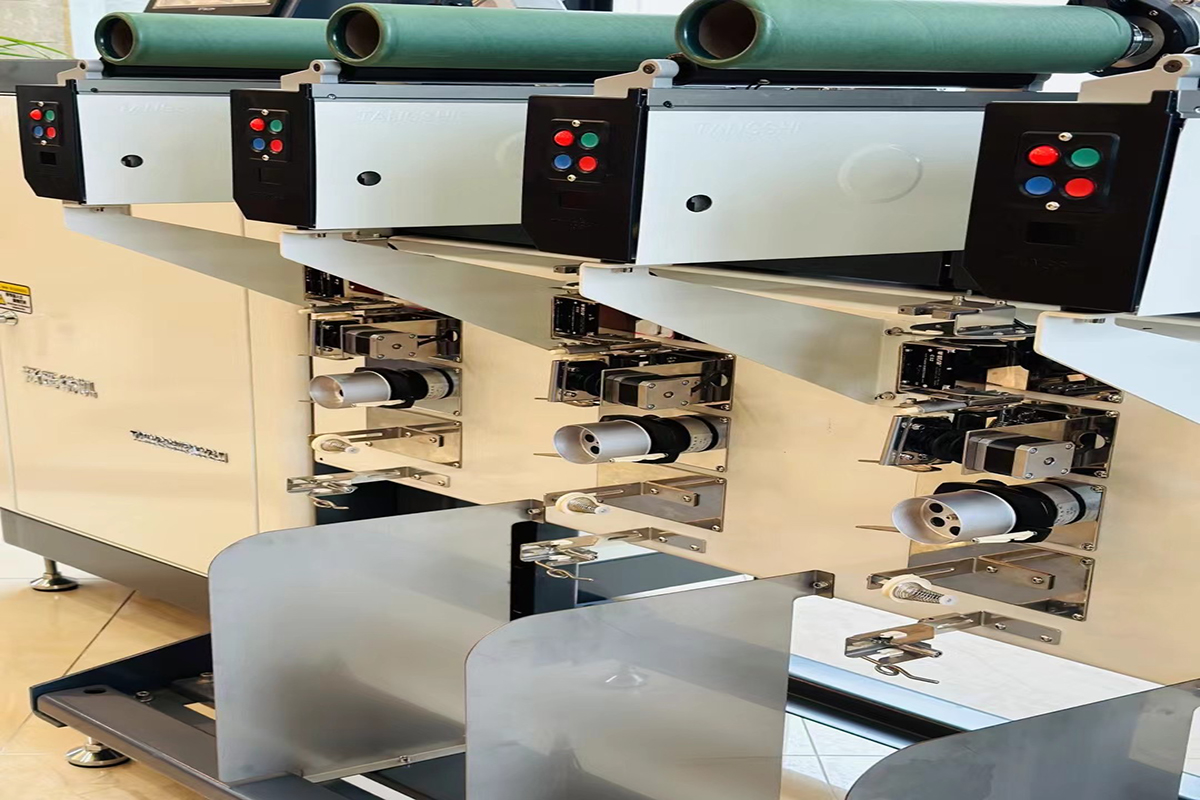

Angled yarn Precision winder
description1
description2
Sepcifications
Type of winding |
Digital or precision |
Winding speed |
Up to 1000m/min (depends on the yarn) |
Package shape |
Freely programable |
Traverse |
25~260mm |
Package dia. |
Up to 280mm |

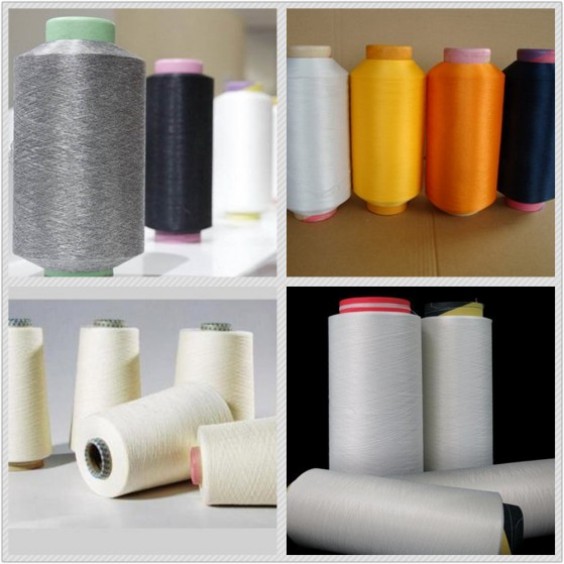

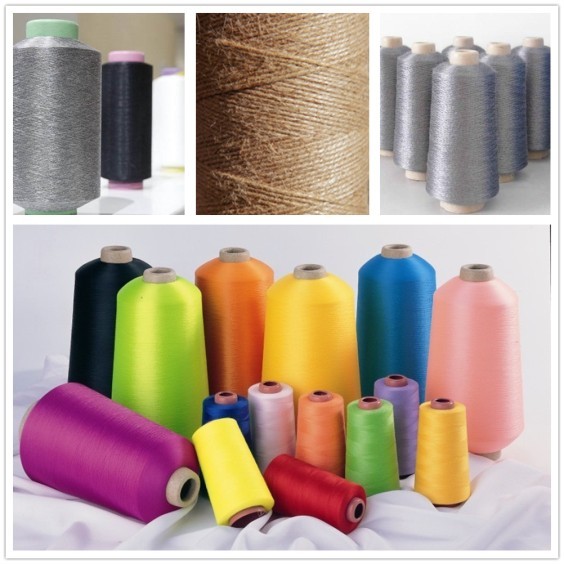

Type of yarn |
Textured or flat filament, elastic yarn, silk, fine technical yarn |
Yarn count |
10~3000 dtex |
Take up tube |
Cylindrical or 3°30′cone or other |
Layout |
Single side |
Nos./segment |
6 spindles |
No. of spindle/set |
Min. 6 / Max. 60 |
Gauge |
360mm |
Drive |
Indivial controlled |
Installed power |
`300W/spindle |
Basic Configuration
1. A central control system inculdes
-touch screen
-central settings
-individual control for each spindle
2. Digital length measuring Set length，Speed regulation system
3. Yarn breakage/full package detection，Automatic stop.
4. Electronic yarn detector ，bobbin diameter can be controlled.
5. Real-time difital tension system
Option
-lubrication system
-tube shape.
-clean traveller
-air splicer

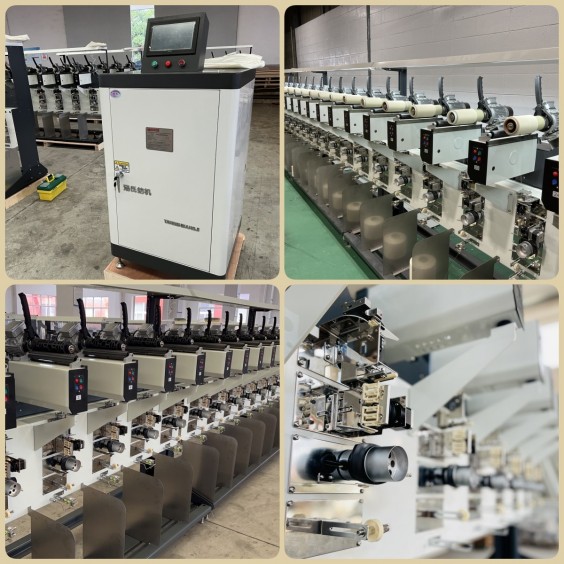

Machine Layout
Control cabinet:( Length, width, height):0.75*0.76*1.52M
Machine(size:M)( Includes control cabinet dimensions)
spindles |
6 |
12 |
18 |
24 |
30 |
36 |
42 |
48 |
54 |
60 |
Length |
2.9 |
5.0 |
7.3 |
9.4 |
11.6 |
13.8 |
16 |
18 |
20 |
22.5 |
width |
0.76 |
0.76 |
0.76 |
0.76 |
0.76 |
0.76 |
0.76 |
0.76 |
0.76 |
0.76 |
height |
1.7 |
1.7 |
1.7 |
1.7 |
1.7 |
1.7 |
1.7 |
1.7 |
1.7 |
1.7 |
Configured Brand
Machine |
TANGSHI |
Detection device |
Italy |
Transformer |
Shanghai (more than 20 years of cooperation) |
LCD touch screen, sensor and other electronic control |
Hangzhou and shanghai(more than 20 years of cooperation) |
Motor |
Shanghai(more than 20 years of cooperation) |
Bearing |
NSK and HCH |
Sheet metal |
TANGSHI |
